Product description

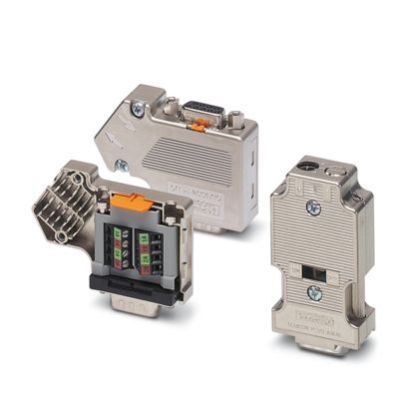

 The D-SUB series, SUBCON-PLUS-PROFIB/... was specially designed for use in PROFIBUS systems up to 12 Mbps. Under field
conditions, it allows convenient and fast connection of the incoming and outgoing bus cable. The terminating resistor is already integrated in all
versions. It can be connected externally by means of a slide switch. At the same time, the outgoing bus segment is switched off. This makes it easy
to start up segment by segment while incorrect terminations are avoided. A special feature of the 35° angled connector is that the internal
connection unit can be turned round. Whether the cable is to be inserted from the right or left can thus be decided on-site.

Your advantages
• Termination resistor can be connected
• Screw connection
• 35° cable outlet
• Change to the D-SUB orientation through a reversible connection block
• Metal housing for high level of immunity to interference at maximum transmission speed
• Vibration and shock resistance in accordance with EN 50155
• Suitable for all common Fast Connect PROFIBUS cables and RS-485 bus lines
